Torsion Spring Design Software

Please fill in

Spring material:

Mmedium diameter D:
mm

Wire diameter d:
mm

Spring coil number Tum:
turns

Angle deg:
degrees

Arm length X1:
mm

Arm length X2:
mm

Rotation Angle A1:
degrees

Rotation Angle A2:
degrees

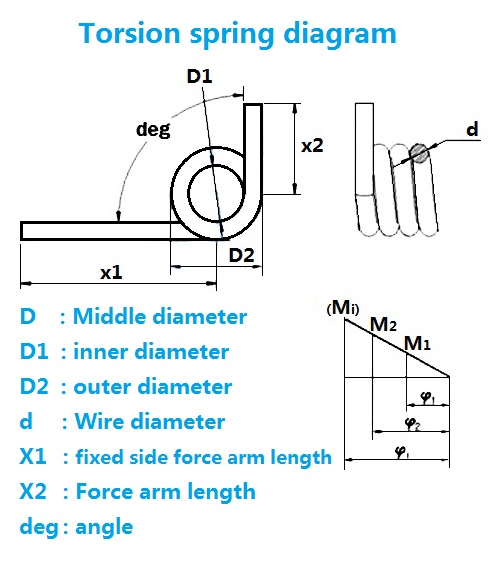

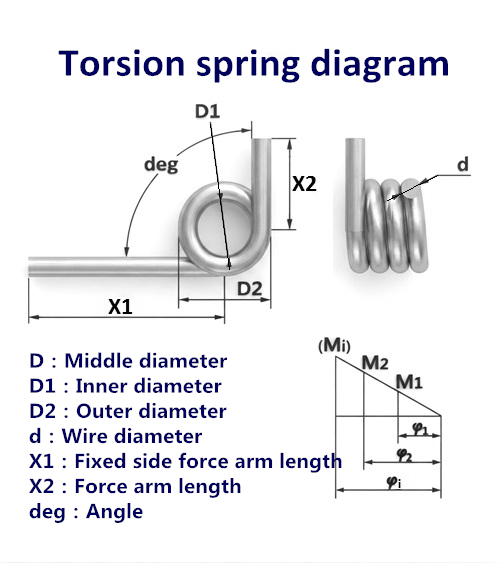

Note: Please carefully fill in the specific parameters of the spring you need, so that the corresponding value of the spring can be calculated. You can also refer to the spring diagram below.

See the results

See the results:

Spring Material:

Longitudinal Spring constant G:
Kg/mm2

Maximum stress Smax:
Pa

Spring constant K=
g.mm/deg

Total length after rotation L=
mm

Inner diameter after rotation Ds=
mm

Force P1=
g

Force P2=
g

Torque M1=
g.mm

Torque M2=
g.mm

Stress S1=
Kg/mm2

Stress S2=
Kg/mm2

Safety rate SF=
%

Spring weight M=
g

*The above results are for reference only.

Torsion spring design software:
It contains many spring force formulas, which can easily realize torsion spring torque calculation, spring force calculation, spring design calculation, etc. I hope this (Torsion spring calculation software) can help you a little in the design of torsion springs!
